How do I choose the right model for my site and volumes?

Match target cars-per-hour, site footprint, ceiling height, and utilities to the appropriate platform. HyTian provides free layout review and recommends models and options after assessing your civil drawings, traffic flow, power standard, and climate.

What makes HyTian different from other manufacturers?

HyTian integrates in-house R&D, fabrication, and assembly with international-grade components (e.g., Mitsubishi PLC, OMRON/Banner sensors), EVA brushes, and high-efficiency Q-series dryers. The result is reliable uptime, high cleaning performance, robust safety, and long service life proven in demanding, high-volume sites.

Can HyTian adapt equipment to local power and climate conditions?

Yes. Systems can be built for regional voltage and frequency (e.g., 220V/60Hz or 380V/50Hz) and equipped for extreme temperatures with insulation, heating, and anti-freeze measures where required.

Does HyTian offer OEM or customized solutions?

Yes. HyTian can OEM and customize tunnel, rollover, touchless, bus and truck washers, wheel-wash lines, and special industrial cleaning equipment. Solutions are engineered to site constraints, vehicle profiles, and local utilities, with optional features like LPR, unattended payment, and water recycling.

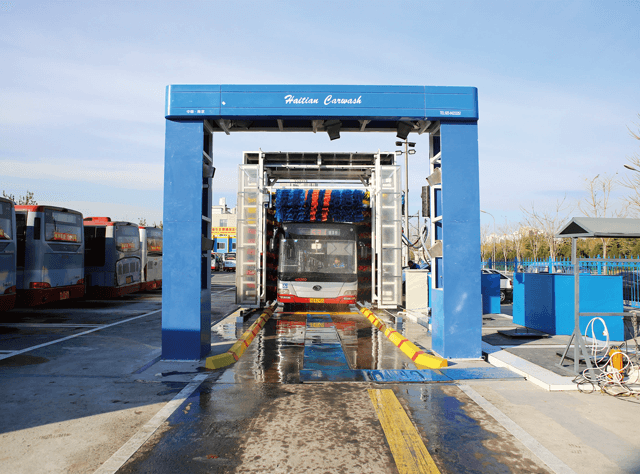

Rollover Bus Wash GH-500

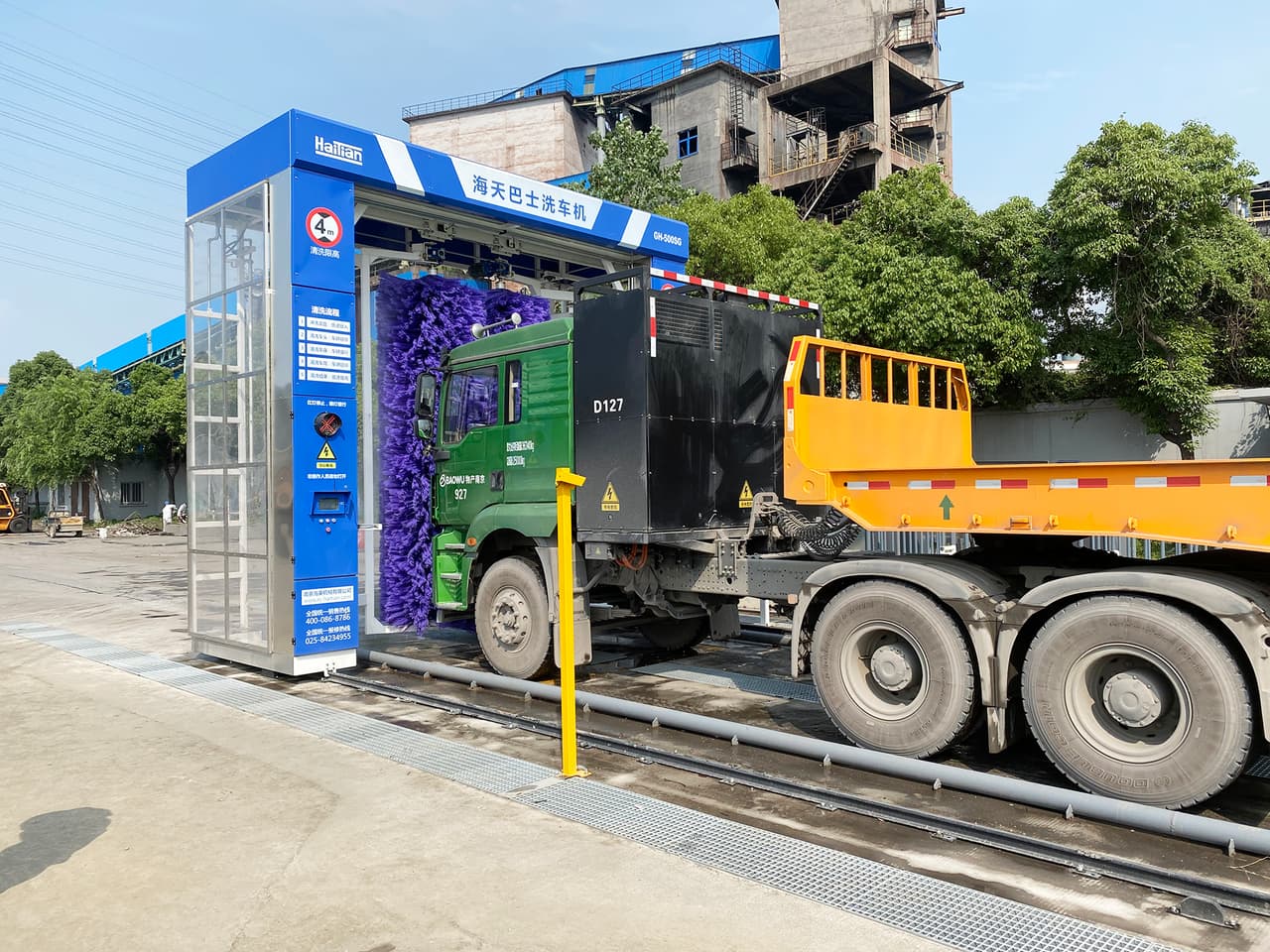

The GH-500 is HyTian’s rollover (gantry) bus and truck wash system for depots and yards where drive-through layouts aren’t practical. The vehicle parks in the wash bay while the gantry travels along rails to clean the front, sides, rear, and roof. Operators can choose single-pass or reciprocating cycles and add profiling high-pressure, drying, and antifreeze options to match local climate and cleanliness targets. Typical output is around 5–20 vehicles per hour, depending on program and soil level.

Request Quote

Buyer guidance

Fleet wash guidance

Rollover Bus Wash GH-500 is a commercial vehicle wash option for fleets that need larger vehicle clearances and repeatable cleaning routines.

Key buyer questions

What matters most when planning Rollover Bus Wash GH-500?: Review maximum vehicle dimensions, traffic circulation, water handling, and driver workflow before layout approval.

Buyer fit matrix

Best fit

Transit, logistics, and fleet operators washing buses, trucks, vans, or service vehicles.

Not ideal for

Retail car wash sites focused only on passenger vehicles.

Highlights

Flexible installation for challenging sites

Rail-mounted gantry design avoids the need for a long drive-through channel and complex civil works, making GH-500 well-suited to depots with constrained space or non-linear traffic flow.

Season-ready operation

Optional temperature-sensing antifreeze protection and strong drying packages support reliable outdoor operation in cold regions, reducing weather-related downtime.

Controlled operating cost

Chemical dosing pumps, selectable wash programs, and optional water recycling help you manage water and chemistry use per vehicle and align with local environmental requirements.

Throughput & wash envelope

Rated for approximately 5–20 vehicles per hour, GH-500 accommodates wash sizes up to about 12 m (L) × 2.5 m (W) × 3.6 m (H) with a typical track length of around 15 m (adjustable to suit site conditions).

Automated wash process

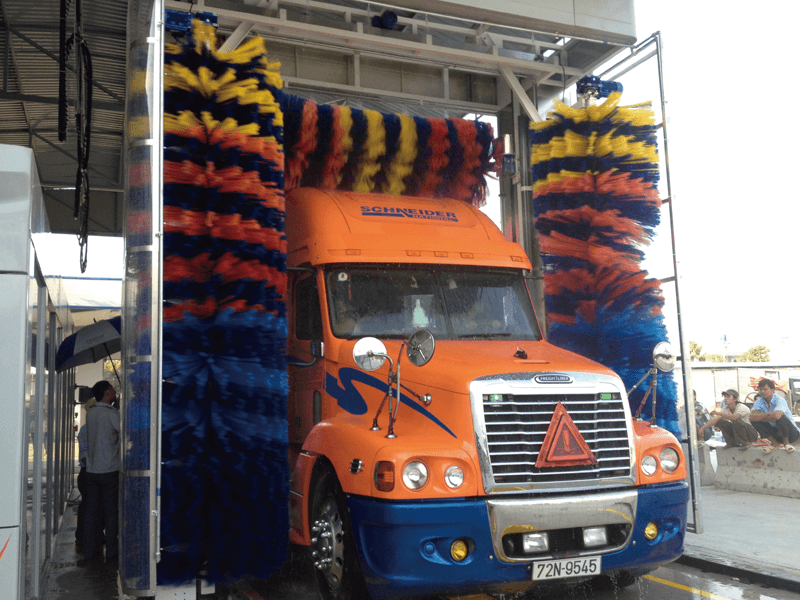

The gantry executes a programmed sequence of detergent application, brush washing (top brush optional), and high-pressure rinsing, with mirror-avoid logic and multiple safety interlocks to help protect vehicles and equipment.

Utilities & control

GH-500 uses three-phase power of approximately 15 kW and water flow around 80 L/min, with PLC-based control and optional profiling high-pressure and strong drying systems to tune wash performance.

Technical specifications

Performance

Specification	Details
Throughput (Cars Per Hour)	15-20
Vehicle Types	Buses

Dimensions

Specification	Details
Length	260cm (8'6")
Width	500cm (16'5")
Height	490cm (16'1")
Max Vehicle Length	1200cm (39'4")
Max Vehicle Width	260cm (8'6")
Max Vehicle Height	400cm (13'1")

Utilities

Specification	Details
Power Supply	380V
Total Power	15KW
Water Consumption	80L/min

Specs

Specification	Details
Water pump	380V, 3KW, 32m

Installation requirements to confirm

Confirm site layout, vehicle envelope, and utilities against these published specifications before finalizing a quote or layout.

Bay and vehicle envelope

Requirement	Published value
Length	260cm (8'6")
Width	500cm (16'5")
Height	490cm (16'1")
Max Vehicle Length	1200cm (39'4")
Max Vehicle Width	260cm (8'6")
Max Vehicle Height	400cm (13'1")

Utilities to confirm

Requirement	Published value
Power Supply	380V
Total Power	15KW
Water Consumption	80L/min

Compare before you choose

Use this comparison table to frame product selection questions before requesting layout support.

Criterion	This product	Compare with	Guidance
Primary fit	Rollover Bus Wash GH-500	Other HyTian automatic wash categories	Compare by vehicle type, site layout, throughput goal, utilities, and water handling.
Site planning	Use the listed specifications and requirements for layout review.	Adjacent models may change bay size, wash method, or utility requirements.	Shortlist models only after confirming vehicle envelope and available installation space.

See It in Action

HyTian GH-500 Rollover Bus Wash | Full Coach & Fleet Wash Demo

See the HyTian GH-500 rollover bus wash complete a full automatic cleaning cycle on a large coach. Unlike a drive-through bus wash, the vehicle remains parked while the rail-mounted gantry travels along the wash bay. The system applies water and detergent, follows the vehicle body with rotating brushes, and cleans the front, sides, rear, and roof through a programmed reciprocating cycle.
