How do I choose the right model for my site and volumes?

Match target cars-per-hour, site footprint, ceiling height, and utilities to the appropriate platform. HyTian provides free layout review and recommends models and options after assessing your civil drawings, traffic flow, power standard, and climate.

What makes HyTian different from other manufacturers?

HyTian integrates in-house R&D, fabrication, and assembly with international-grade components (e.g., Mitsubishi PLC, OMRON/Banner sensors), EVA brushes, and high-efficiency Q-series dryers. The result is reliable uptime, high cleaning performance, robust safety, and long service life proven in demanding, high-volume sites.

Can HyTian adapt equipment to local power and climate conditions?

Yes. Systems can be built for regional voltage and frequency (e.g., 220V/60Hz or 380V/50Hz) and equipped for extreme temperatures with insulation, heating, and anti-freeze measures where required.

Does HyTian offer OEM or customized solutions?

Yes. HyTian can OEM and customize tunnel, rollover, touchless, bus and truck washers, wheel-wash lines, and special industrial cleaning equipment. Solutions are engineered to site constraints, vehicle profiles, and local utilities, with optional features like LPR, unattended payment, and water recycling.

Drive-through Bus Wash TH-350

The TH-350/450 is HyTian’s drive-through bus wash system proven in large depots and public-transport fleets worldwide. Vehicles move slowly through the fixed frame while four brush groups clean the front, rear, and both sides. The system is space-efficient and highly automated, supporting approximately 40–80 buses per hour with optional wastewater treatment for environmentally conscious operations.

Request Quote

Buyer guidance

Fleet wash guidance

Drive-through Bus Wash TH-350 is a commercial vehicle wash option for fleets that need larger vehicle clearances and repeatable cleaning routines.

Key buyer questions

What matters most when planning Drive-through Bus Wash TH-350?: Review maximum vehicle dimensions, traffic circulation, water handling, and driver workflow before layout approval.

Buyer fit matrix

Best fit

Transit, logistics, and fleet operators washing buses, trucks, vans, or service vehicles.

Not ideal for

Retail car wash sites focused only on passenger vehicles.

Highlights

Proven depot workhorse

Deliver continuous washing for large fleets, with 40–80 buses per hour throughput under rated conditions, so vehicles return to service quickly even on tight schedules.

Gentle, consistent clean

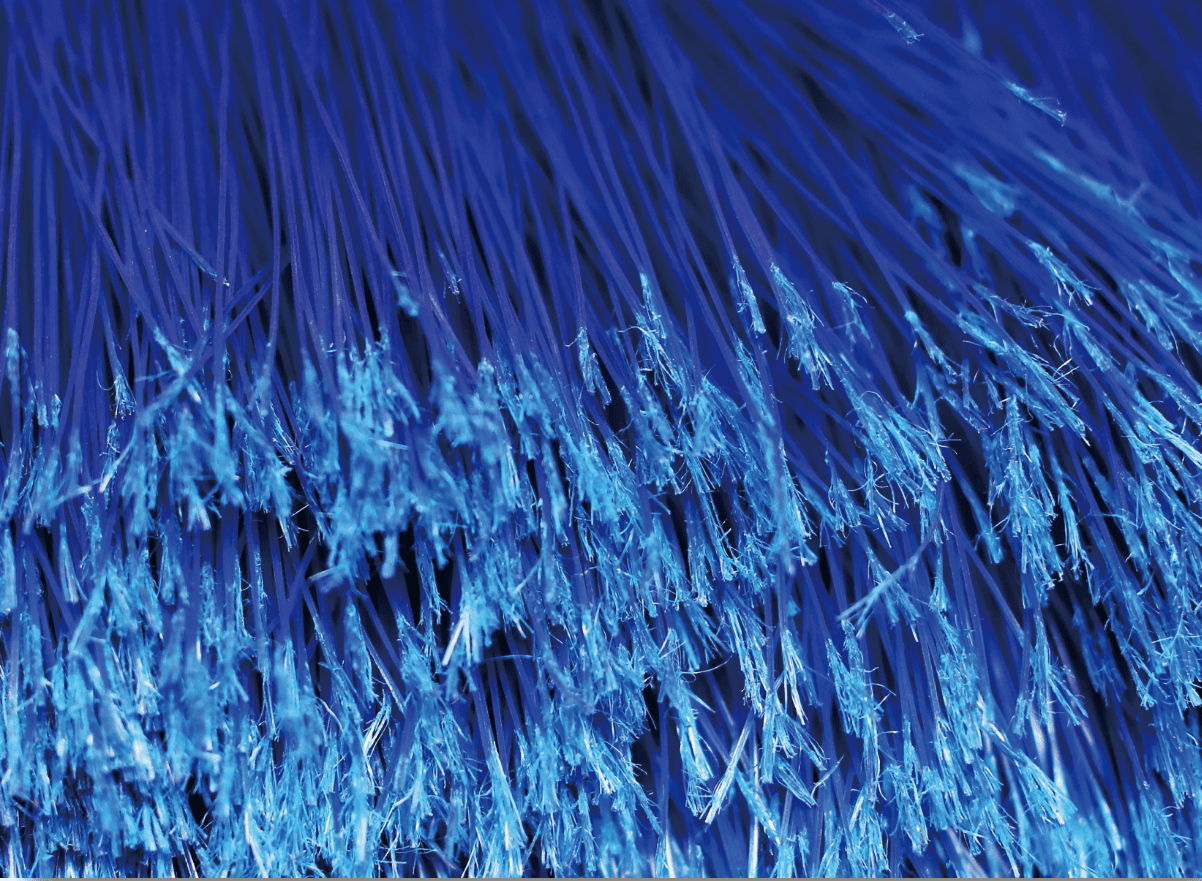

Imported soft brush material and controlled contact pressure provide coverage across tall, flat body panels while helping protect fleet paintwork, decals, mirrors, and accessories.

Economical fleet washing

Efficient water application per bus and optional wastewater recycling systems help reduce utility costs and support compliance with local environmental regulations.

Capacity & envelope

Rated for 40–80 buses per hour, with typical water usage of around 150 L per vehicle and power demand of about 12 kW, and maximum vehicle heights of 3.5 m (TH-350) or 4.2 m (TH-450)—covering most city buses and coaches.

Automation & control

Automatic and manual modes with Mitsubishi PLC control let operators choose between water-only and chemical wash programs, balancing cleaning power with operating cost and site policies.

Durability

A hot-zinc treated structure with baked finish and imported wear-resistant brush strips are designed for long life in high-throughput depots, reducing downtime and replacement frequency.

Technical specifications

Performance

Specification	Details
Throughput (Cars Per Hour)	40-80 CPH

Dimensions

Specification	Details
Length	880cm (28'10")
Width	462cm (15'2")
Height	402cm (13'2")
Max Vehicle Width	260cm (8'6")
Max Vehicle Height	350cm (11'6")

Utilities

Specification	Details
Total Power	12KW
Water Consumption	150L per car

Specs

Specification	Details
Top brush	1 set
Side brush	2 sets of long brushes

Additional specifications

Specification	Details
Remote Diagnostics	Yes
Control System	Mitsubishi Programmable Control

Installation requirements to confirm

Confirm site layout, vehicle envelope, and utilities against these published specifications before finalizing a quote or layout.

Bay and vehicle envelope

Requirement	Published value
Length	880cm (28'10")
Width	462cm (15'2")
Height	402cm (13'2")
Max Vehicle Width	260cm (8'6")
Max Vehicle Height	350cm (11'6")

Utilities to confirm

Requirement	Published value
Total Power	12KW
Water Consumption	150L per car

Compare before you choose

Use this comparison table to frame product selection questions before requesting layout support.

Criterion	This product	Compare with	Guidance
Primary fit	Drive-through Bus Wash TH-350	Other HyTian automatic wash categories	Compare by vehicle type, site layout, throughput goal, utilities, and water handling.
Site planning	Use the listed specifications and requirements for layout review.	Adjacent models may change bay size, wash method, or utility requirements.	Shortlist models only after confirming vehicle envelope and available installation space.

Product FAQs

View all FAQs

Solutions for

Construction & Mining

Construction and mining sites must stop mud and sediment from leaving the gate—protecting roads and drains and keeping projects compliant. Wheel and undercarriage cleaning is central.

Learn more about Construction & Mining

Commercial Vehicles

Fleets and public transit operators need quick, repeatable exterior cleaning so vehicles return to service fast—across a wide range of heights, lengths, and geometries

Learn more about Commercial Vehicles

Success Stories

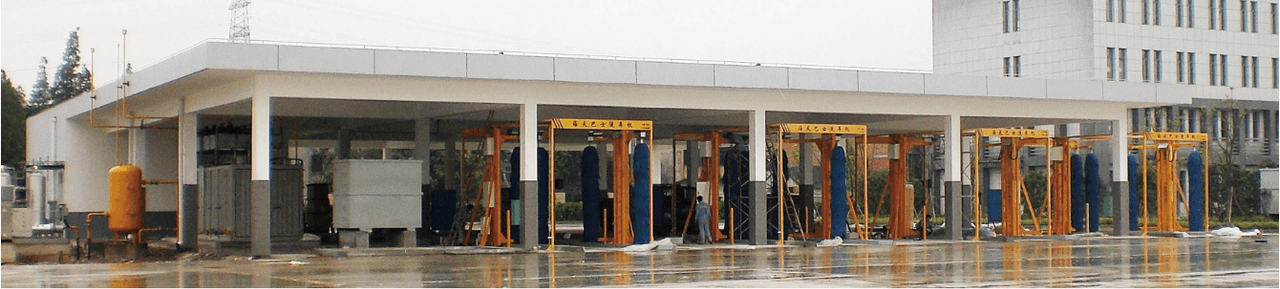

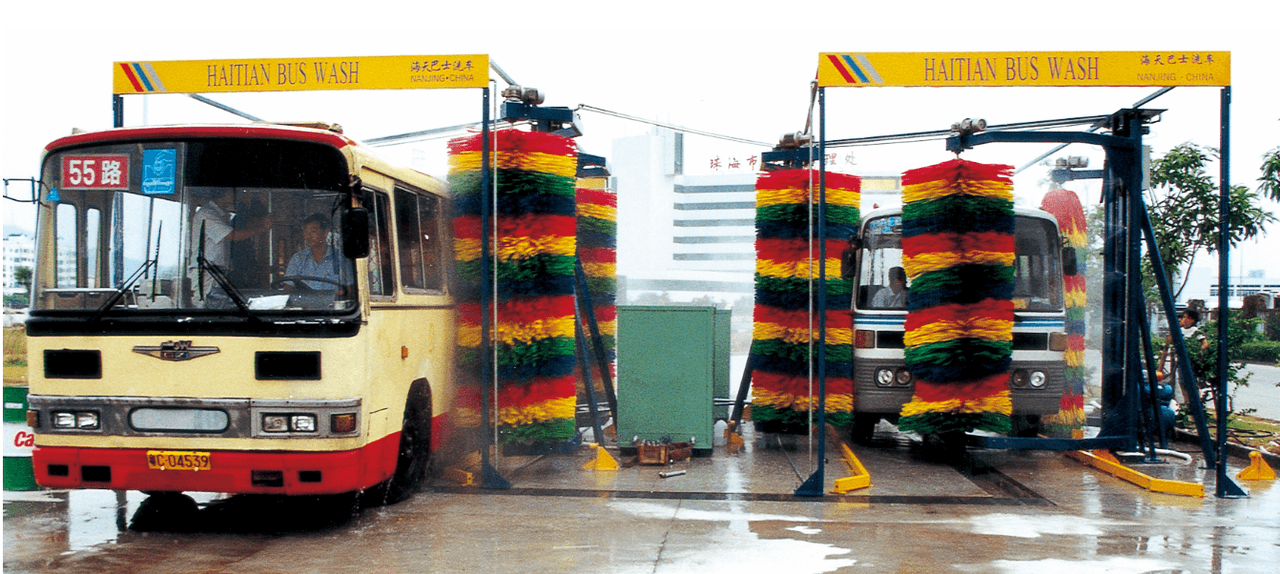

Zhuhai Public Transport Group Company Scales Fleet Washing with HyTian TH-Series Bus Washers

How Zhuhai Public Transport Group Company scaled depot-rate washing with HyTian’s TH-S drive-through bus washers—compact footprint, up to 80 buses/hour, detail-aware cleaning, durability, water recycling, and long-term partnership.

Read case study
