What’s the difference between tunnel, rollover, and touchless systems?

Tunnel systems (TX Series) use conveyors for high throughput; rollover systems (XL Series) move the gantry around a stationary car for compact sites; touchless systems (MY Series) use high-pressure water and chemistry without brushes for premium paint-safe cleaning.

How do I choose the right model for my site and volumes?

Match target cars-per-hour, site footprint, ceiling height, and utilities to the appropriate platform. HyTian provides free layout review and recommends models and options after assessing your civil drawings, traffic flow, power standard, and climate.

What are the minimum site dimensions for tunnel, rollover, and bus wash?

Typical guidelines: tunnel width ~3.8 m with overall length 9–17 m (customizable), rollover width ≥4 m, height ≥3 m, length ≥9 m, and bus wash bays around 5.2 m width and up to ~4.2 m cleaning height. Final dimensions are confirmed during site design.

Does HyTian offer OEM or customized solutions?

Yes. HyTian can OEM and customize tunnel, rollover, touchless, bus and truck washers, wheel-wash lines, and special industrial cleaning equipment. Solutions are engineered to site constraints, vehicle profiles, and local utilities, with optional features like LPR, unattended payment, and water recycling.

Can HyTian adapt equipment to local power and climate conditions?

Yes. Systems can be built for regional voltage and frequency (e.g., 220V/60Hz or 380V/50Hz) and equipped for extreme temperatures with insulation, heating, and anti-freeze measures where required.

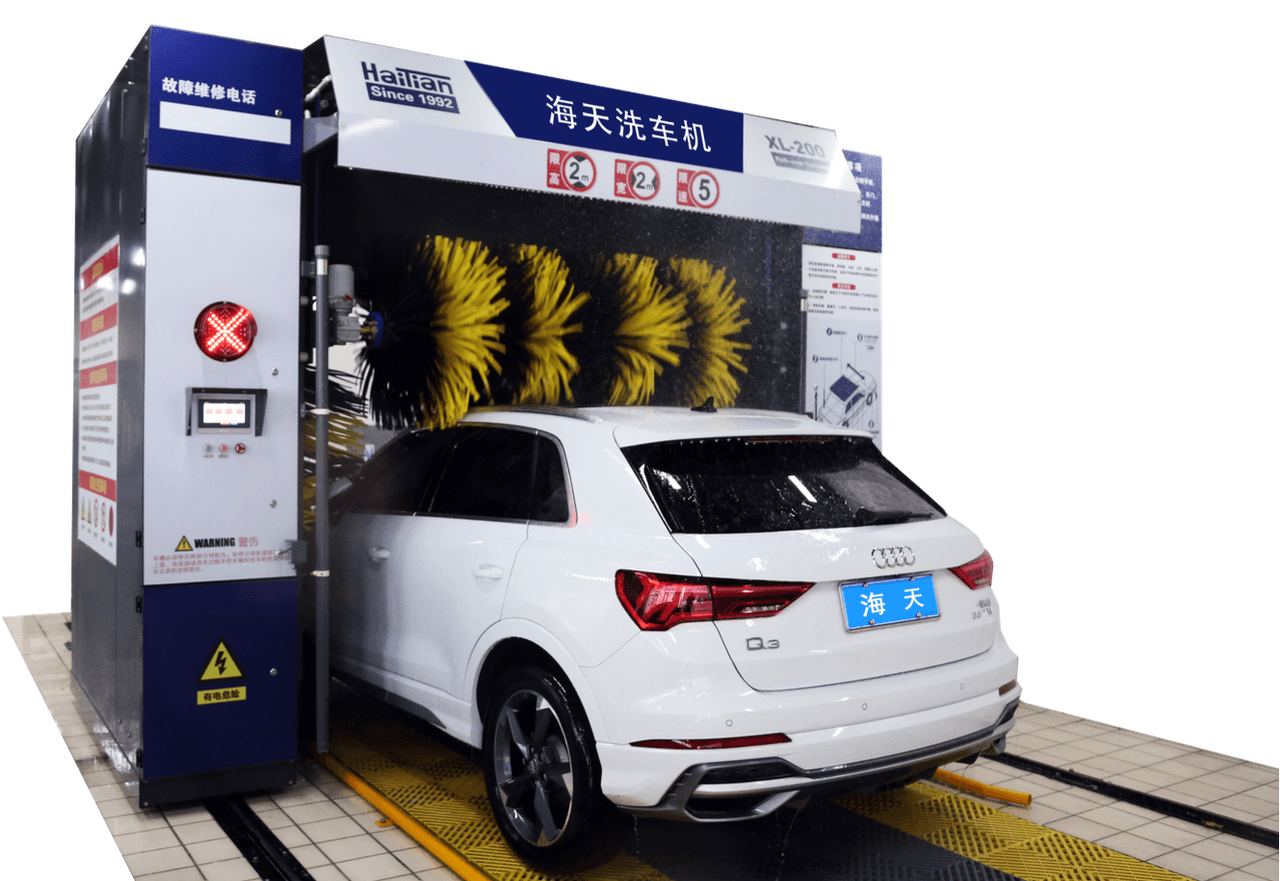

Rollover XL-200

The XL-200 is HyTian’s compact in-bay (rollover) automatic car wash system for sites that need reliable cleaning in a small footprint—dealerships, service centers, gas stations, and unattended bays. With EVA wide-body brushes, precise chemical dosing, and fixed top drying, XL-200 delivers consistent results at ~15–20 cars per hour, while “fault-masking” controls and a galvanized, DuPont powder-coated frame help maximize uptime and reduce maintenance overhead.

Request Quote

Buyer guidance

Rollover buyer guidance

Rollover XL-200 is an in-bay automatic rollover wash option for sites that want automated washing in a compact bay.

Key buyer questions

When is Rollover XL-200 a better fit than tunnel equipment?: Rollover systems usually fit sites that need automatic washing without building a full tunnel conveyor line.

Buyer fit matrix

Best fit

Fuel and c-store bays, dealers, and service sites with limited linear space.

Not ideal for

High-volume tunnel sites that need continuous conveyor throughput.

Highlights

Keep the bay earning, not idle

A touchscreen HMI, wash counters, and intelligent “fault-masking” logic help the XL-200 continue operating through minor issues, so you can schedule service on your terms instead of shutting down during peak hours.

Designed for tight footprints and retrofits

Optional high-pressure wheel/rocker pre-wash, split-frame installation for low entrances, and customizable enclosures and payment/start options make the XL-200 easy to integrate into existing bays, small urban sites, or remodel projects.

Control your chemistry spend

CNC metering for detergents and wax delivers repeatable dosing every cycle, helping you cut chemical waste, keep packages on-budget, and standardize results across different operators and shifts.

Built for years of service

A hot-dip galvanized steel structure with DuPont powder-coat finish offers strong corrosion resistance compared to traditional paint, helping protect your investment in harsh wash-bay environments.

HyTian Rollover car wash system uses EVA wide-body brushes apply a smooth, even pressure curve

Clean, safe, repeatable results

EVA wide-body brushes apply a smooth, even pressure curve, delivering strong cleaning performance while protecting paint, mirrors, wipers, and trim—ideal for modern vehicles and mixed customer fleets.

Throughput & footprint

Throughput: ~15–20 vehicles/hour under rated conditions. Wash envelope: up to 5.3 m (L) × 2.2 m (W) × 2.0 m (H) with a 9.6 m rail length, giving you a compact bay layout that still handles most passenger vehicles and SUVs.

Brush system

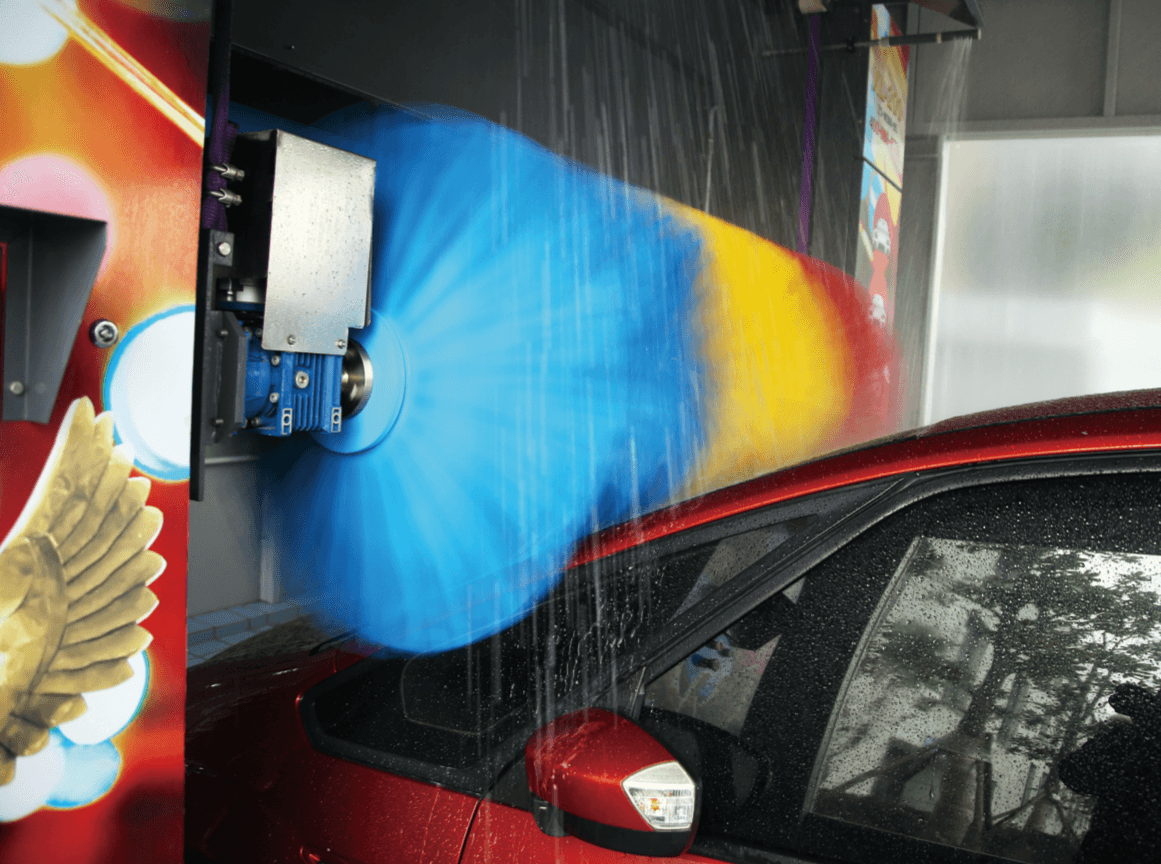

A VFD-controlled top brush and two pressure-sensing side brushes adapt to different vehicle shapes, while optional liftable wheel brushes target lower panels, wheels, and rocker areas for deeper cleaning where road film builds up.

Drying

Four fixed top blowers (4 × 5.5 kW) focus airflow on roofs, hoods, and rear glass for consistent drying performance—optimized for limited headroom bays where side blowers aren’t practical.

HyTian's controlled pumps for shampoo/wax dosing with precision (0.1ML)

Precision dosing

Numerically controlled dosing pumps apply shampoo, foam, and wax with high precision, making it easier to run standardized wash recipes and track cost-per-package across your sites.

Smart operations enabled for HyTian tunnel car wash system

Operations console

An HD touchscreen console provides real-time status, error prompts, and daily/monthly/annual wash counters, so managers can monitor utilization, spot trends, and plan service without guessing.

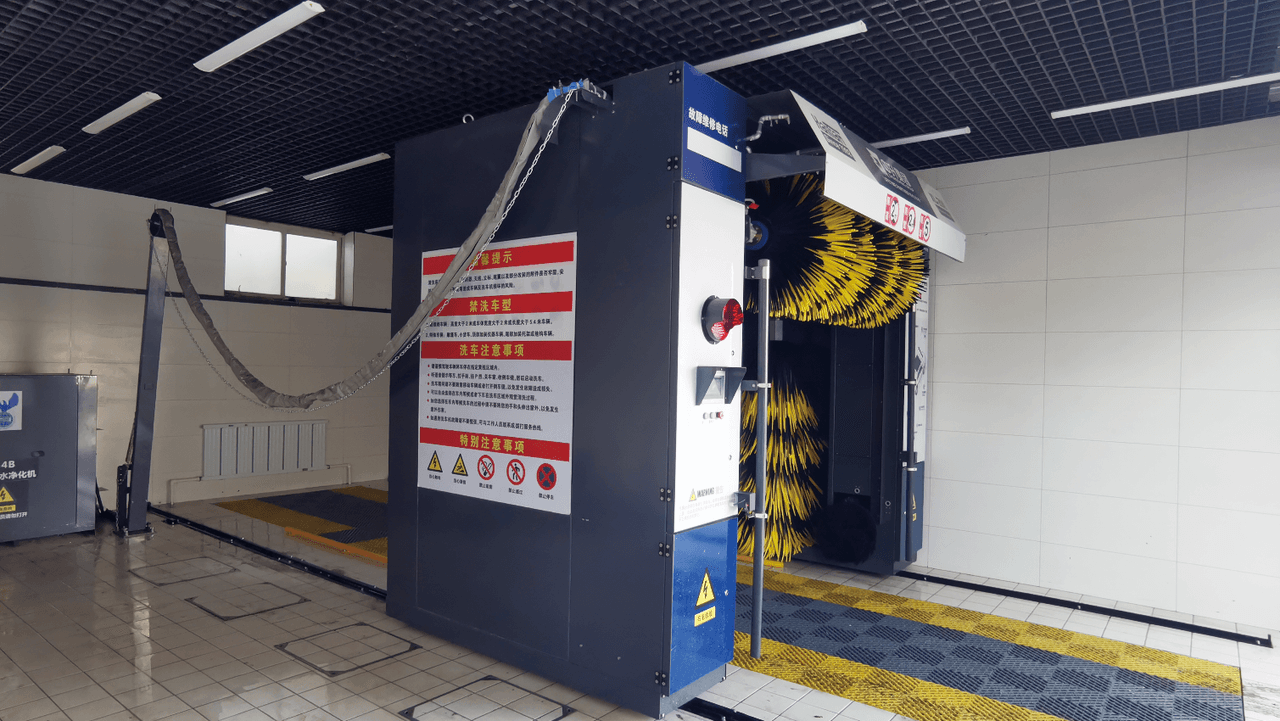

HyTian XL-200 Rollover car wash system offers customizable full-bay enclosure with tempered glass.

Options & integrations

The XL-200 supports IC card, QR, and remote-start modules, multiple piping layouts (side/top/rear), and a customizable full-bay tempered-glass enclosure—giving you flexibility to match local payment habits and branding.

Technical specifications

Performance

Specification	Details
Throughput (Cars Per Hour)	15-20 CPH
Vehicle Types	Small cars, Pick-up trucks, Vans

Dimensions

Specification	Details
Length	220cm (7'3")
Width	385cm (12'8")
Height	300cm (9'10")
Rail length	900cm (29'6")
Max Vehicle Length	520cm (17'1")
Max Vehicle Width	210cm (6'11")
Max Vehicle Height	200cm (6'7")

Utilities

Specification	Details
Power Supply	380V
Total Power	17KW
Water Consumption	70

Specs

Specification	Details
Wheel brush	2 sets
Top brush	1 set
Side brush	2 sets
Countouring dryer	4KW * 4 blowers

Installation requirements to confirm

Confirm site layout, vehicle envelope, and utilities against these published specifications before finalizing a quote or layout.

Bay and vehicle envelope

Requirement	Published value
Length	220cm (7'3")
Width	385cm (12'8")
Height	300cm (9'10")
Rail length	900cm (29'6")
Max Vehicle Length	520cm (17'1")
Max Vehicle Width	210cm (6'11")
Max Vehicle Height	200cm (6'7")

Utilities to confirm

Requirement	Published value
Power Supply	380V
Total Power	17KW
Water Consumption	70

Compare before you choose

Use this comparison table to frame product selection questions before requesting layout support.

Criterion	This product	Compare with	Guidance
Primary fit	Rollover XL-200	Other HyTian automatic wash categories	Compare by vehicle type, site layout, throughput goal, utilities, and water handling.
Site planning	Use the listed specifications and requirements for layout review.	Adjacent models may change bay size, wash method, or utility requirements.	Shortlist models only after confirming vehicle envelope and available installation space.
