What’s the difference between tunnel, rollover, and touchless systems?

Tunnel systems (TX Series) use conveyors for high throughput; rollover systems (XL Series) move the gantry around a stationary car for compact sites; touchless systems (MY Series) use high-pressure water and chemistry without brushes for premium paint-safe cleaning.

Does HyTian offer OEM or customized solutions?

Yes. HyTian can OEM and customize tunnel, rollover, touchless, bus and truck washers, wheel-wash lines, and special industrial cleaning equipment. Solutions are engineered to site constraints, vehicle profiles, and local utilities, with optional features like LPR, unattended payment, and water recycling.

How do I choose the right model for my site and volumes?

Match target cars-per-hour, site footprint, ceiling height, and utilities to the appropriate platform. HyTian provides free layout review and recommends models and options after assessing your civil drawings, traffic flow, power standard, and climate.

What options and upgrades are available for HyTian systems?

Popular options include undercarriage wash, license plate recognition, unattended QR/IC payments, color-foam and wax coating, remote diagnostics, high-efficiency dryers, sound-dampened fans, and water recycling to cut consumption and operating cost.

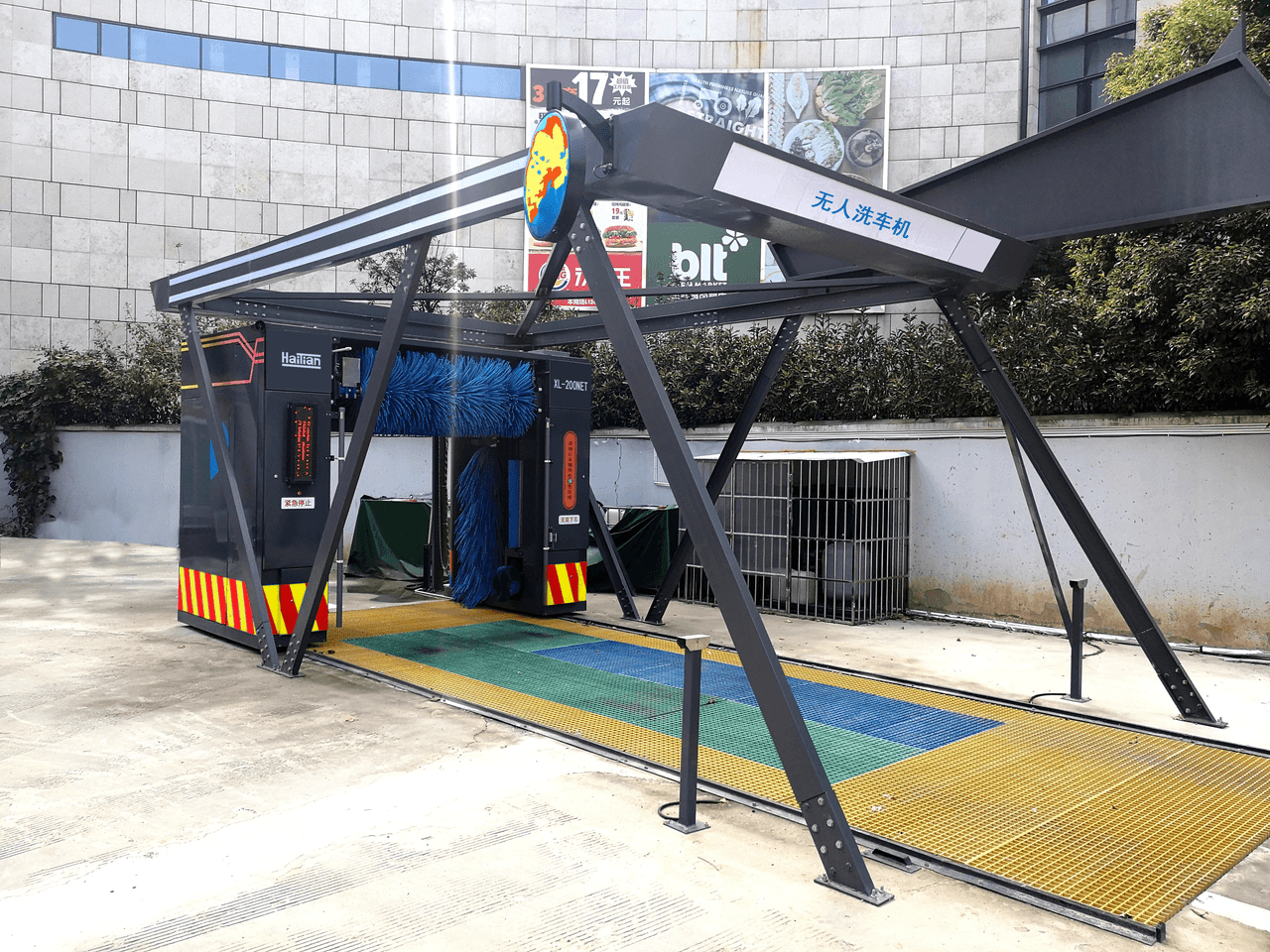

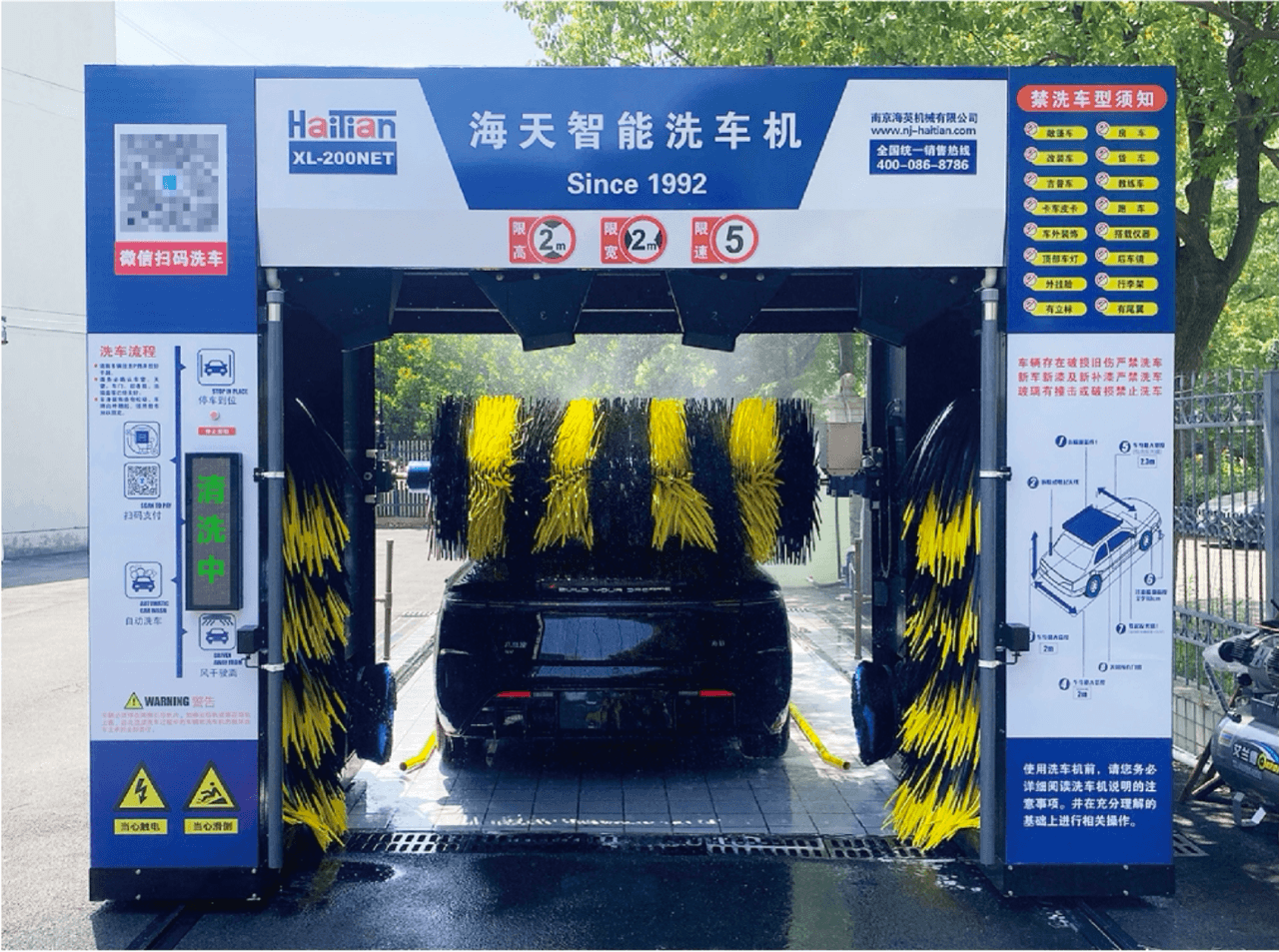

Rollover XL-200NET

The XL-200NET builds on the proven XL-200 rollover platform with a fully self-service operating stack: cashless scan-to-start, centralized cloud management, remote diagnostics/control, and auto-drain options for cold-weather sites. With a five-brush / four-blower configuration, layered safety, and rich telemetry, XL-200NET is engineered for 24/7, low-labor operation at ~15–20 cars per hour.

Request Quote

Buyer guidance

Rollover buyer guidance

Rollover XL-200NET is an in-bay automatic rollover wash option for sites that want automated washing in a compact bay.

Key buyer questions

When is Rollover XL-200NET a better fit than tunnel equipment?: Rollover systems usually fit sites that need automatic washing without building a full tunnel conveyor line.

Buyer fit matrix

Best fit

Fuel and c-store bays, dealers, and service sites with limited linear space.

Not ideal for

High-volume tunnel sites that need continuous conveyor throughput.

Highlights

True 24/7, cashless operation

Run your bay around the clock. Scan-to-start payment integrations and a central management platform enable multi-site, unmanned operation with consolidated reporting—ideal for fuel retailers and wash operators who want consistent revenue without on-site staff.

Lower labor and service overhead

Spend less time rolling trucks. Remote fault codes, data push to the server, and optional remote control/diagnostics let your team triage issues off-site, reducing emergency visits, shortening downtime, and improving visibility for your service provider.

Consistent clean & dry

A full EVA brush pack (top + side + liftable wheel brushes) combined with four low-noise “Q-type” top blowers is engineered to achieve ≥99% cleaning coverage and ≥98% drying under rated conditions—helping you deliver a consistently clean, dry vehicle with every package.

Layered protections for vehicles and customers

Guide rails, anti-collision soft rods, top-brush drop detection, and clear voice + LED prompts help customers park correctly and support safer, repeatable operation in unattended bays.

Throughput up to 20 CPH

Throughput: ~15–20 vehicles/hour under rated conditions. Wash envelope: up to 5.3 m (L) × 2.2 m (W) × 2.0 m (H) with a 9.6 m rail length, suitable for most passenger vehicles, crossovers, and SUVs.

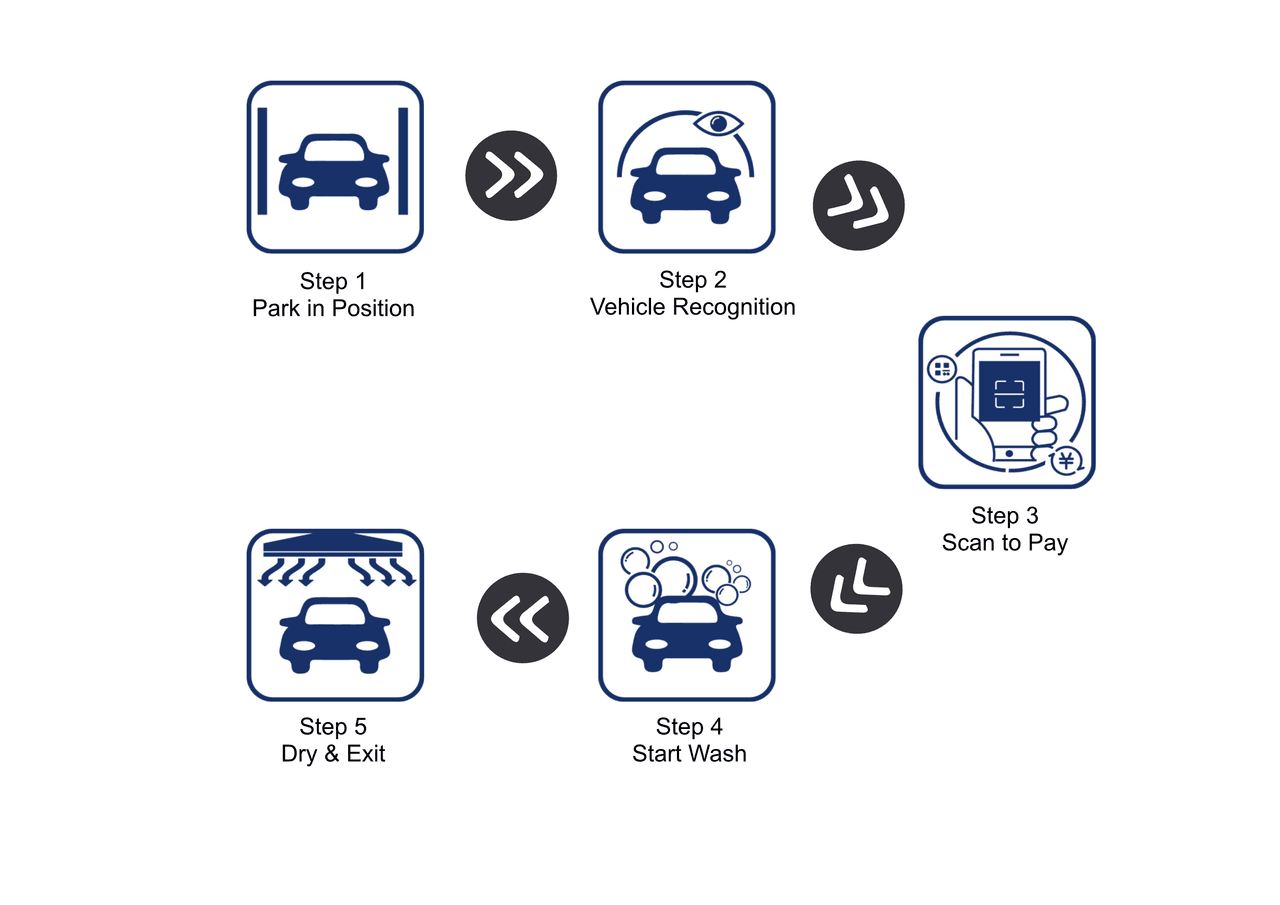

Automated self-service wash process of HyTian XL-200NET

Automation Stack

The XL-200NET automation stack includes self-service payment/start options, a 7″ terminal HMI, optional 4G connectivity, and server-side data/control interfaces so you can monitor, configure, and report on multiple sites from a central platform.

Brush & Dryer

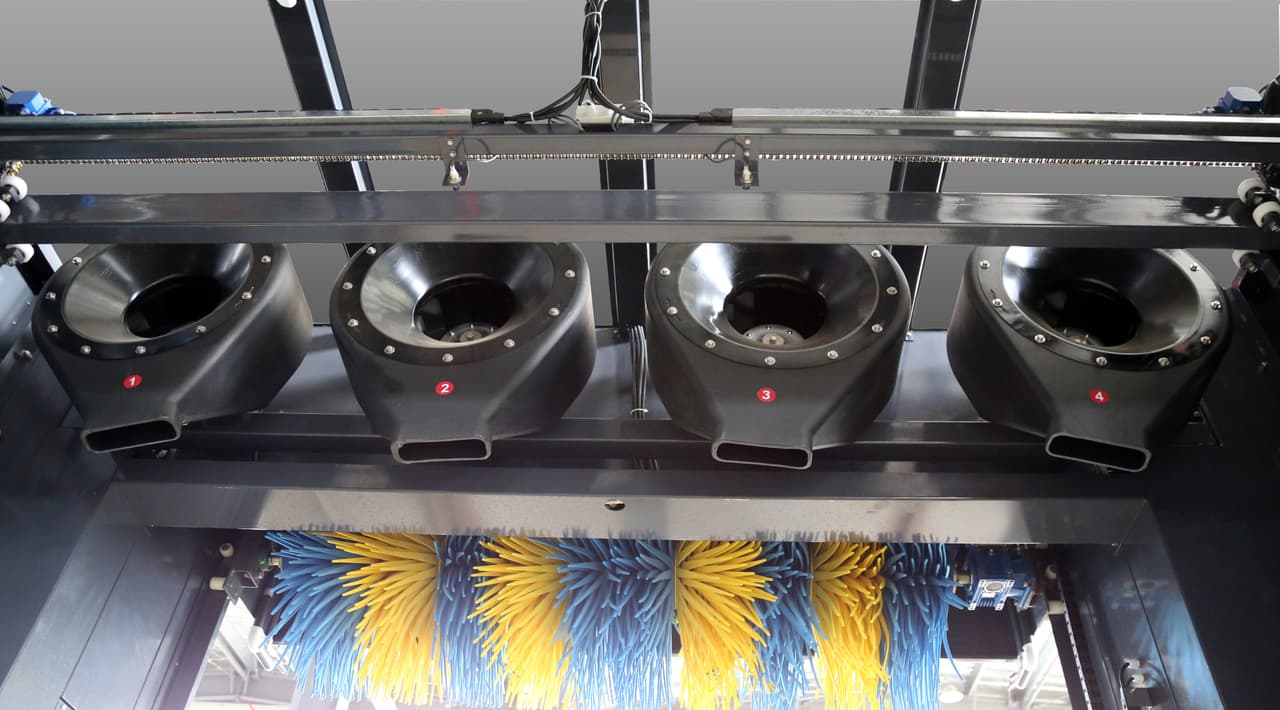

A five-brush configuration (VFD-controlled top brush, pressure-sensing side brushes, and liftable wheel brushes) plus 4 × 5.5 kW fixed top blowers delivers a thorough wash and dry cycle in a compact bay layout.

HyTian's controlled pumps for shampoo/wax dosing with precision (0.1ML)

Precision dosing & alerts

CNC chemical dosing with 0.28 mL pulses and low-level alarms keeps chemistry under control, while refill and maintenance notifications can be sent to the platform or mobile devices to help staff stay ahead of issues.

Industrial build

A fully galvanized frame with DuPont powder-coat finish offers high corrosion resistance and is designed for long service life in demanding wash environments.

Environmental options

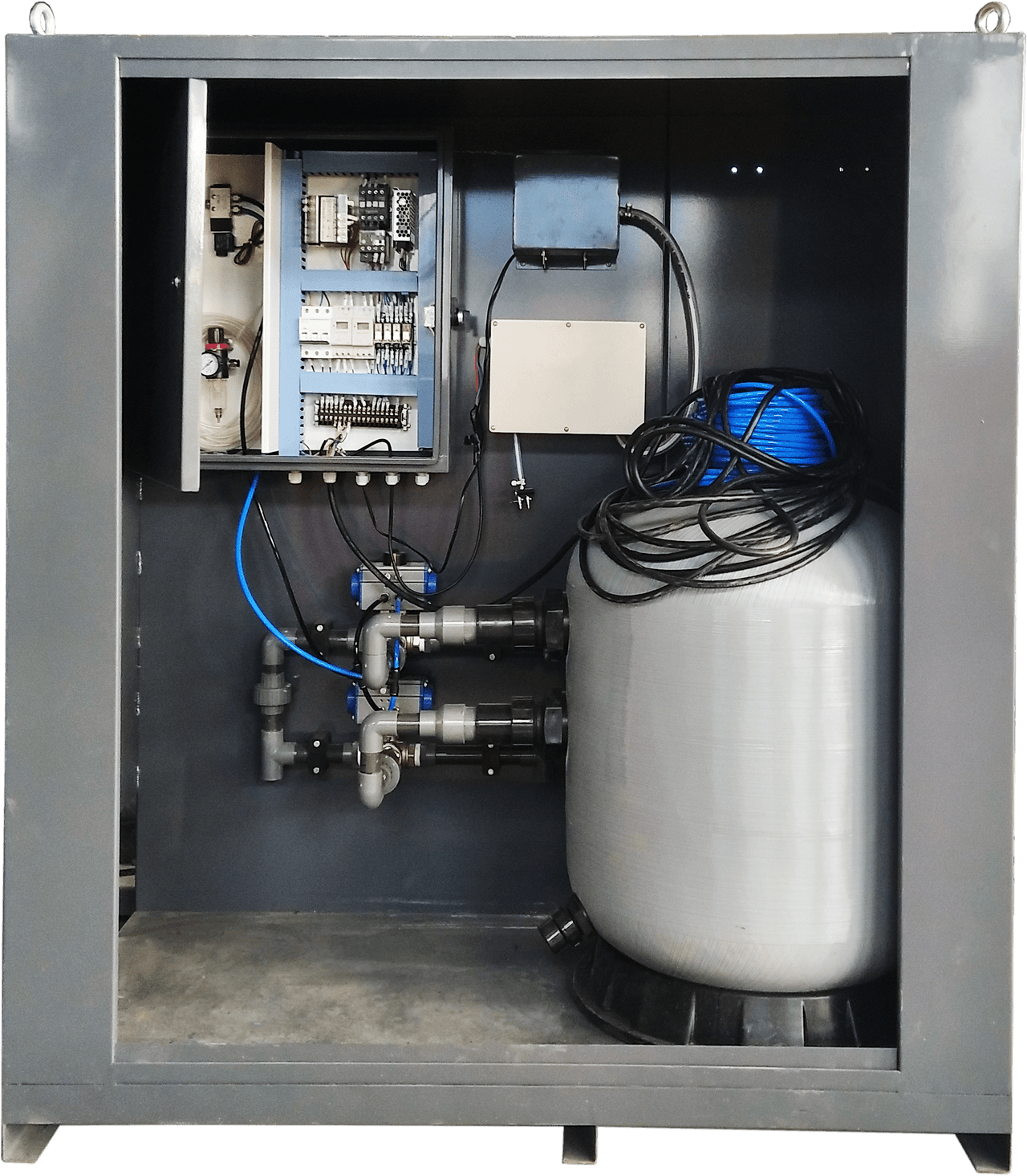

A 1T integrated water tank is standard, with optional wastewater recycling and filtration packages to help reduce fresh-water consumption and support local environmental requirements.

Technical specifications

Performance

Specification	Details
Throughput (Cars Per Hour)	15-20 CPH
Vehicle Types	Small cars, Pick-up trucks, Vans

Dimensions

Specification	Details
Length	220cm (7'3")
Width	385cm (12'8")
Height	300cm (9'10")
Rail length	900cm (29'6")
Max Vehicle Length	520cm (17'1")
Max Vehicle Width	210cm (6'11")
Max Vehicle Height	200cm (6'7")

Utilities

Specification	Details
Power Supply	380V
Total Power	17KW
Water Consumption	70

Specs

Specification	Details
Wheel brush	2 sets
Top brush	1 set
Side brush	2 sets
Countouring dryer	4KW * 4 blowers

Installation requirements to confirm

Confirm site layout, vehicle envelope, and utilities against these published specifications before finalizing a quote or layout.

Bay and vehicle envelope

Requirement	Published value
Length	220cm (7'3")
Width	385cm (12'8")
Height	300cm (9'10")
Rail length	900cm (29'6")
Max Vehicle Length	520cm (17'1")
Max Vehicle Width	210cm (6'11")
Max Vehicle Height	200cm (6'7")

Utilities to confirm

Requirement	Published value
Power Supply	380V
Total Power	17KW
Water Consumption	70

Compare before you choose

Use this comparison table to frame product selection questions before requesting layout support.

Criterion	This product	Compare with	Guidance
Primary fit	Rollover XL-200NET	Other HyTian automatic wash categories	Compare by vehicle type, site layout, throughput goal, utilities, and water handling.
Site planning	Use the listed specifications and requirements for layout review.	Adjacent models may change bay size, wash method, or utility requirements.	Shortlist models only after confirming vehicle envelope and available installation space.
