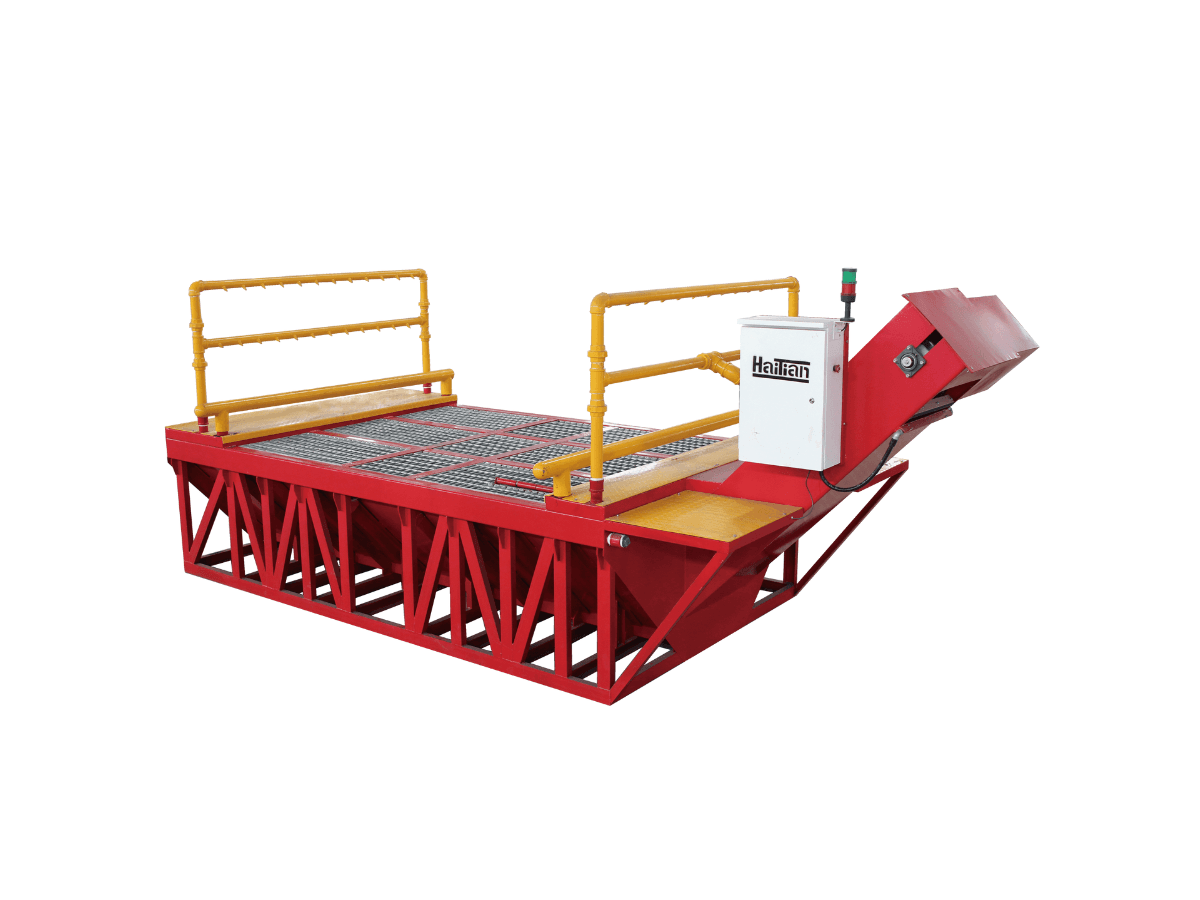

Grate Wheel Wash DCX-100T
The DCX-100T is HyTian’s grate-type, drive-through wheel wash system for ultra-heavy construction, mining, and industrial vehicles. Trucks roll slowly over a reinforced steel grate while high-energy jets clean wheels and undercarriage. The system combines automatic sludge discharge, internal water recycling, and configurable width/height to support vehicles up to 100 tons and help keep public roads cleaner and sites more compliant.
Buyer guidance
Wheel-wash guidance
Grate Wheel Wash DCX-100T is a wheel-wash system for sites that need to reduce track-out from construction, mining, industrial, or fleet operations.
Key buyer questions
- What should buyers confirm before installing Grate Wheel Wash DCX-100T?
- Review vehicle type, soil load, exit lane layout, drainage, sludge handling, and water recycling needs.
Buyer fit matrix
Best fit
- Construction, mining, waste, and industrial yards managing mud or road debris at exits.
Not ideal for
- Passenger-vehicle retail wash sites where full exterior car washing is the core service.
Highlights
Built for ultra-heavy fleets
Cleaner exits, less track-out
Lower cleanup and disposal effort
Reduce water use over long shifts

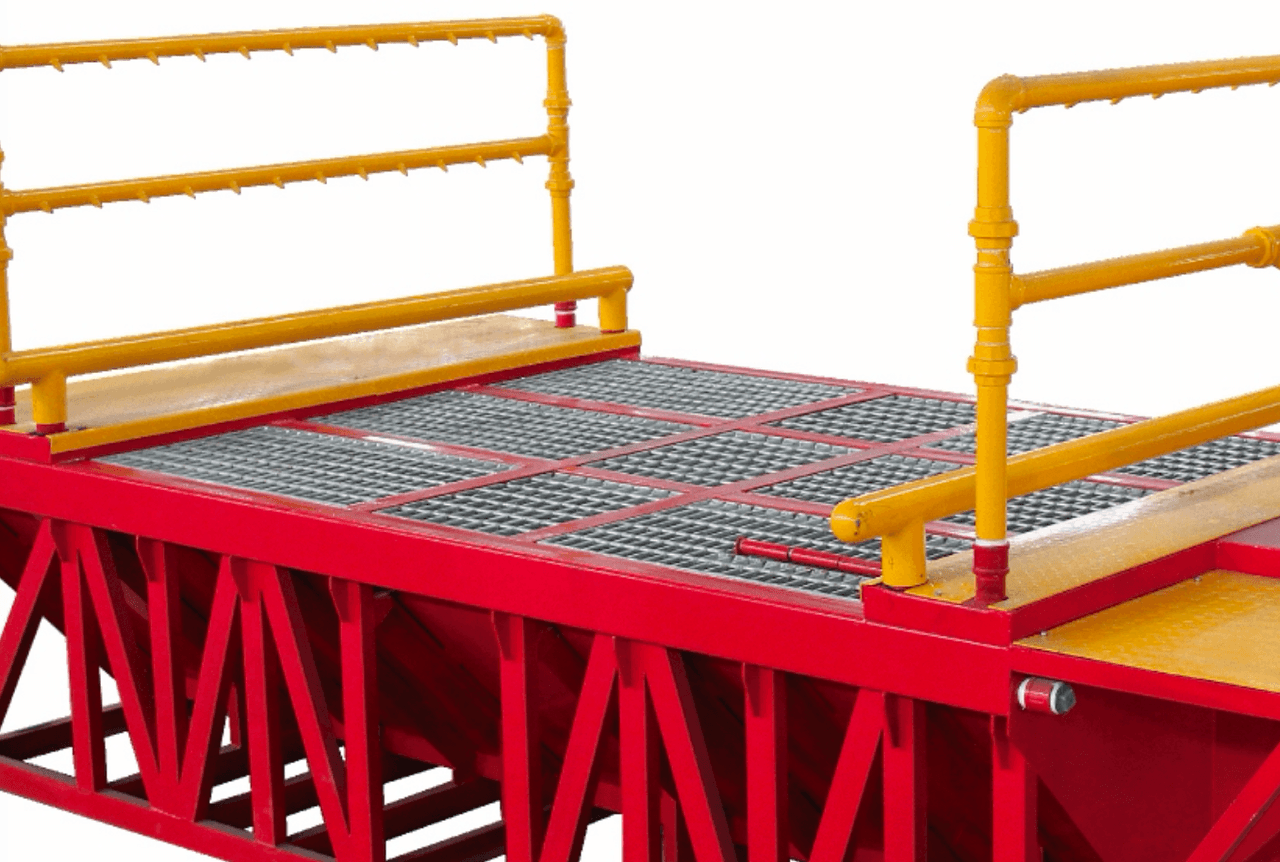

Grate-type pit design
A drive-through, in-ground grate design is installed at the site exit, enabling continuous traffic flow while jets clean tires, rims, and undercarriage as vehicles roll across.
Auto sludge/material removal
Built-in sludge handling continuously carries mud and aggregate away from the wash zone, helping maintain nozzle performance and reduce manual pit cleaning.
Closed-loop water circuit
Engineered for recirculated water use, the system routes runoff through settling and filtration stages (as configured) and back to the wash, reducing fresh-water consumption and wastewater volume.
Configurable geometry & capacity
Wash length, width, and side-wall heights can be adapted to your fleet profile and entrance geometry, with options to increase pump power or nozzle density for more demanding soil conditions.
Line integration
DCX-100T can be paired with body-wash modules, undercarriage sprays, and custom gantries to create a complete heavy-vehicle cleaning line for high-risk or high-visibility operations.
Technical specifications
Performance
| Specification | Details |
|---|---|
| Wash Cycle Time (min) | 45-60s Per Vehicle |
Dimensions
| Specification | Details |
|---|---|
| Length | 225cm (7'5") |
| Width | 535cm (17'7") |
| Height | 100cm (3'3") |
Utilities
| Specification | Details |
|---|---|
| Power Supply | 380V, 50Hz |
| Total Power | 17KW |
| Water Consumption | 3-5L Per Vehicle |
Specs
| Specification | Details |
|---|---|
| High pressure | 3-4kg per sqcm |
Additional specifications
| Specification | Details |
|---|---|
| Control Method | Manual, Automatic |
| Control System | Mitsubishi Programmable Control |
Installation requirements to confirm
Confirm site layout, vehicle envelope, and utilities against these published specifications before finalizing a quote or layout.
Bay and vehicle envelope
| Requirement | Published value |
|---|---|
| Length | 225cm (7'5") |
| Width | 535cm (17'7") |
| Height | 100cm (3'3") |
Utilities to confirm
| Requirement | Published value |
|---|---|
| Power Supply | 380V, 50Hz |
| Total Power | 17KW |
| Water Consumption | 3-5L Per Vehicle |
Compare before you choose
Use this comparison table to frame product selection questions before requesting layout support.
| Criterion | This product | Compare with | Guidance |
|---|---|---|---|
| Primary fit | Grate Wheel Wash DCX-100T | Other HyTian automatic wash categories | Compare by vehicle type, site layout, throughput goal, utilities, and water handling. |
| Site planning | Use the listed specifications and requirements for layout review. | Adjacent models may change bay size, wash method, or utility requirements. | Shortlist models only after confirming vehicle envelope and available installation space. |
