Roller Wheel Wash DCX-100G

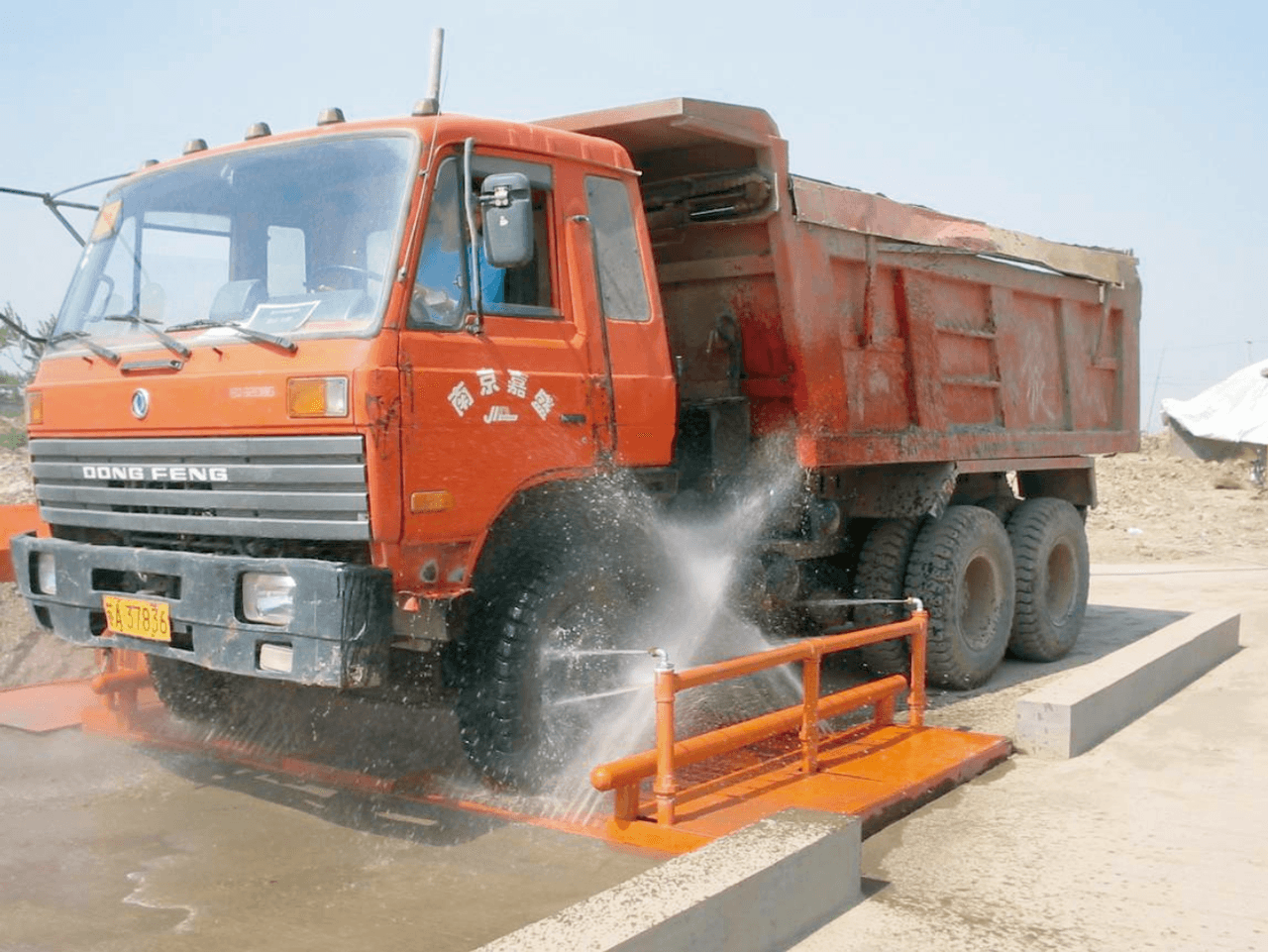

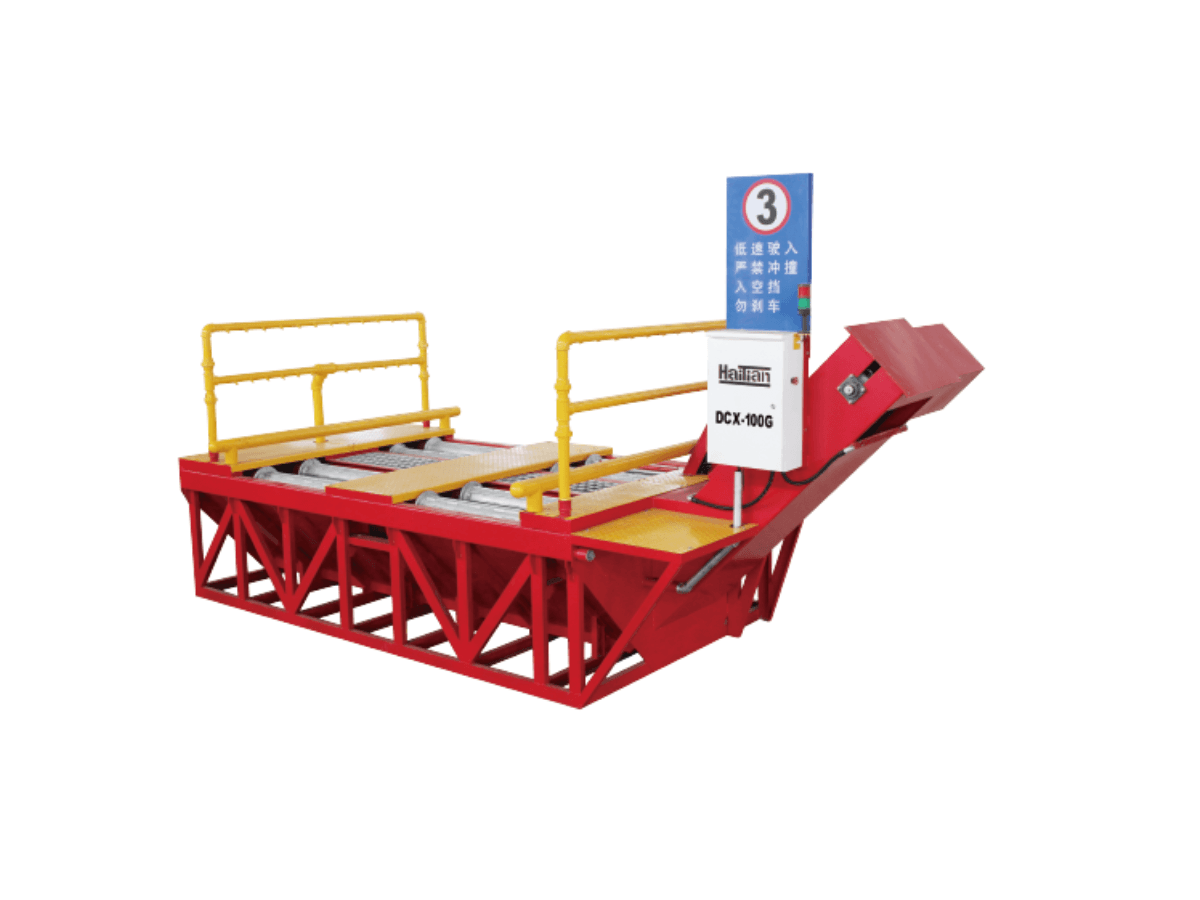

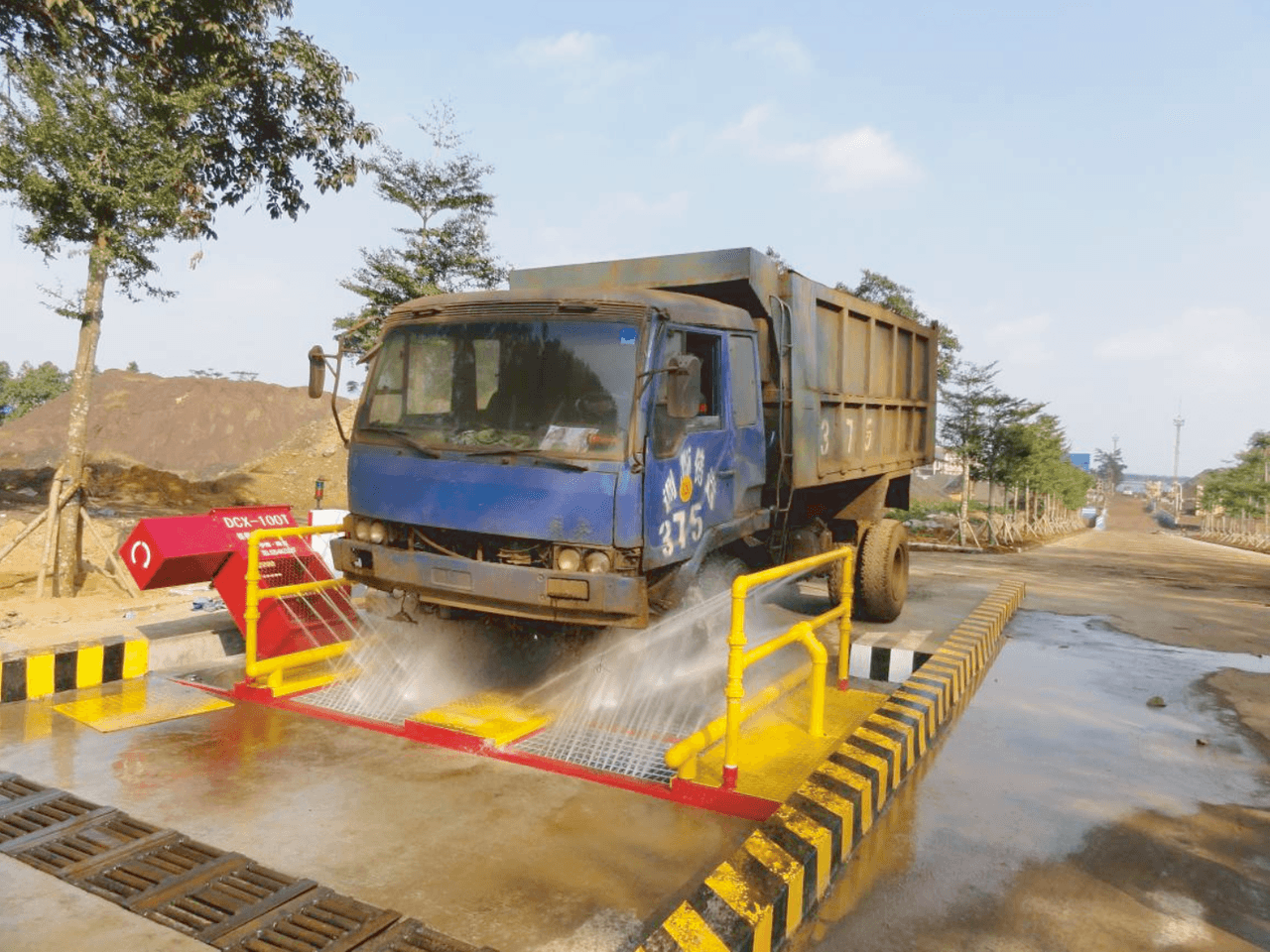

The DCX-100G is HyTian’s pit-type, roller-drive wheel wash system for heavy construction and industrial vehicles. Powered rollers rotate the wheels while high-pressure jets cut through packed mud and clay, delivering deeper tread cleaning than simple drive-through systems. An automatic sludge conveyor, closed-loop water recycling, and 45–60 second wash cycles help keep gates moving, water use low, and roads around your site cleaner.

Request Quote

Buyer guidance

Wheel-wash guidance

Roller Wheel Wash DCX-100G is a wheel-wash system for sites that need to reduce track-out from construction, mining, industrial, or fleet operations.

Key buyer questions

What should buyers confirm before installing Roller Wheel Wash DCX-100G?: Review vehicle type, soil load, exit lane layout, drainage, sludge handling, and water recycling needs.

Buyer fit matrix

Best fit

Construction, mining, waste, and industrial yards managing mud or road debris at exits.

Not ideal for

Passenger-vehicle retail wash sites where full exterior car washing is the core service.

Highlights

Deeper wheel & tread cleaning

The roller mechanism spins the wheels during the wash so jets can shear off embedded mud and clay from treads, sidewalls, and rims—ideal for sites with sticky soils and heavy contamination.

Fast cycle, high utilization

Typical cycle times of 45–60 seconds per vehicle minimize delays at busy exits and help you maintain production without sacrificing cleaning quality.

Lower water consumption per vehicle

Closed-loop water recycling can bring per-vehicle consumption down to roughly 1–3 L in many configurations, substantially reducing water and discharge costs compared with basic wash pads.

Heavy-duty reliability for engineering vehicles

DCX-100G is engineered for 15–30-ton trucks with Mitsubishi PLC control and a structurally integrated design that is robust enough for demanding construction and industrial sites.

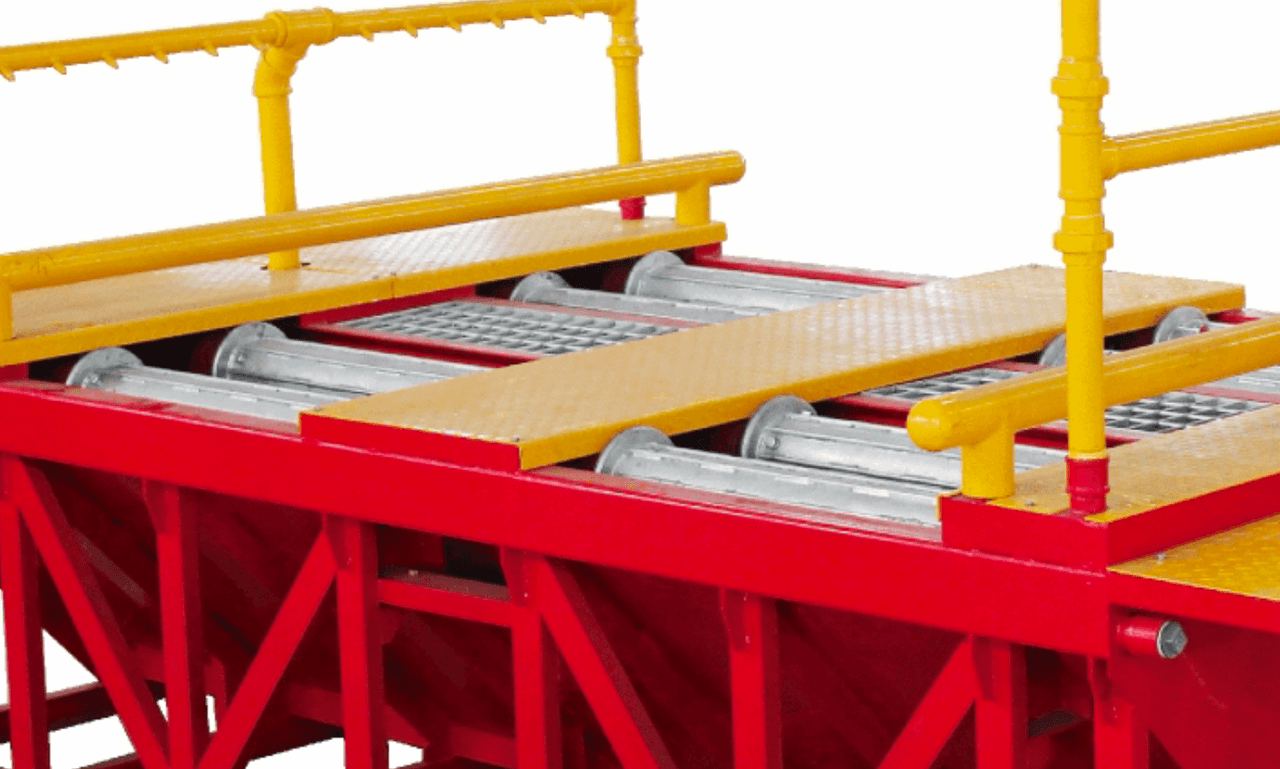

Roller-drive wash action

Pit-mounted drive rollers engage the tires and rotate them through one or more revolutions while high-pressure jets target wheel faces, treads, and sidewalls for more complete cleaning.

Auto sludge discharge

A sludge conveyor continuously removes settled mud and material from the pit, keeping the system clear, supporting longer unattended runs, and simplifying solids handling.

Industrial controls & modes

Mitsubishi PLC control with auto/manual modes and mechanical induction start provides simple operation, reliable automation, and easy integration with on-site safety and signaling systems.

Water Recycling

Built-in water recycling recirculates process water through settling/filtration stages to cut fresh-water consumption and support environmental best practices at construction and mining sites.

Technical specifications

Performance

Specification	Details
Wash Cycle Time (min)	45-60s Per ehicle

Dimensions

Specification	Details
Length	225cm (7'5")
Width	535cm (17'7")
Height	100cm (3'3")

Utilities

Specification	Details
Power Supply	380V, 50Hz
Total Power	20KW
Water Consumption	3-5L Per Vehicle

Specs

Specification	Details
High pressure	3-4kg per sqcm

Additional specifications

Specification	Details
Control Method	Manual, Automatic
Control System	Mitsubishi Programmable Control

Installation requirements to confirm

Confirm site layout, vehicle envelope, and utilities against these published specifications before finalizing a quote or layout.

Bay and vehicle envelope

Requirement	Published value
Length	225cm (7'5")
Width	535cm (17'7")
Height	100cm (3'3")

Utilities to confirm

Requirement	Published value
Power Supply	380V, 50Hz
Total Power	20KW
Water Consumption	3-5L Per Vehicle

Compare before you choose

Use this comparison table to frame product selection questions before requesting layout support.

Criterion	This product	Compare with	Guidance
Primary fit	Roller Wheel Wash DCX-100G	Other HyTian automatic wash categories	Compare by vehicle type, site layout, throughput goal, utilities, and water handling.
Site planning	Use the listed specifications and requirements for layout review.	Adjacent models may change bay size, wash method, or utility requirements.	Shortlist models only after confirming vehicle envelope and available installation space.
